imported into gitlab version 2.2.1

README.md

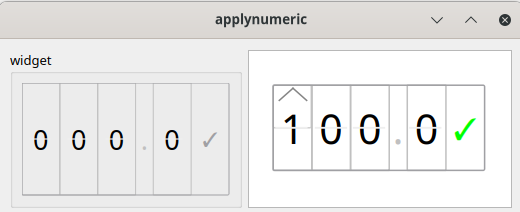

+# new generation cumbia-qtcontrols
+
+
+## Installation
+
+### Dependencies
+
+Qt libraries
+
+### Download build and install
+
+> git clone https://github.com/ELETTRA-SincrotroneTrieste/cumbia-qtcontrols-ng.git
+> cd cumbia-qtcontrols-ng
+> qmake && make && make install
+
+### Options
+You can either edit cumbia-qtcontrols-ng.pri to change the *INSTALL_ROOT* installation prefix or pass the *INSTALL_ROOT=path/to/qumbia-svg* to qmake:
+
+> qmake INSTALL_ROOT=/my/custom/dir
+
+#### Default prefix
+
+The default prefix is */usr/local/cumbia-libs* (includes in */usr/local/cumbia-libs/include/cumbia-qtcontrols-ng/*, libs in */usr/local/cumbia-libs/lib/* and so forth)
+
+### Important advice
+
+Please make sure the installation prefix is the same as that used for the *cumbia* library. This ensures proper library interoperability.
+
+### Are you ready?
+
+Start reading the <a href="https://elettra-sincrotronetrieste.github.io/cumbia-qtcontrols-ng/">cumbia svg library documentation</a>.
+
+# cumbia-qtcontrols-ng

base/circularplot/out_of_bounds_distortions.cpp

+#include "out_of_bounds_distortions.h"
+
+double OOBDistort::x_distort(double x, const double &, const double &,
+                                 const double &, const double &) const {
+    return x;
+}
+
+double OOBDistort::y_distort(double y, const double &, const double &,
+                                 const double &, const double &) const {
+    return y;
+}
+
+void OOBDistort::bounds_distort(double *x, double *X, double *y, double *Y,
+                                    const double &xlb, const double &xub, const double &ylb, const double &yub,
+                                    const double &xmin, const double &xmax, const double &ymin, const double &ymax) const {
+    double xx = (xmax - xmin) * 0.4;
+    double yy = (ymax - ymin) * 0.4;
+    *x = xlb <= xmin ? xlb : xlb - xx;
+    *X = xub >= xmax ? xub : xub + xx;
+    *y = ylb <= ymin ? ylb : ylb - yy;
+    *Y = yub >= ymax ? yub : yub + yy;
+}
+
+double OOBLogDistort::x_distort(double x, const double &, const double &,
+                                    const double &, const double &) const {
+    return x;
+}
+
+double OOBLogDistort::y_distort(double y, const double &ylb, const double &yub,
+                                    const double &ymin, const double &ymax) const {
+    (void) ymin; (void) ymax;
+    if(y < ylb) y = ylb - log(ylb - y);
+    if(y > yub) y = yub + log(y - yub);
+    return y;
+}
+
+void OOBLogDistort::bounds_distort(double *x, double *X, double *y, double *Y,
+                                       const double &xlb, const double &xub, const double &ylb, const double &yub,
+                                       const double &xmin, const double &xmax, const double &ymin, const double &ymax) const {
+    double xx = (xmax - xmin) * 1.1; // x extra
+    double yy = (ymax - ymin) * 1.1;
+    double dY = ymax + yy;
+    double dy = ymin - yy;
+    double dX = xmax + xx;
+    double dx = xmin - xx;
+    *x = xlb <= xmin ? xlb : xlb - (dx > 0 ? log(dx) : log(-dx));
+    *X = xub >= xmax ? xub : xub + (dX > 0 ? log(dX) : log(-dX));
+    *y = ylb <= ymin ? ylb : ylb - (dy > 0 ? log(dy) : log(-dy));
+    *Y = yub >= ymax ? yub : yub + (dY > 0 ? log(dY) : log(-dY));
+}

base/circularplot/out_of_bounds_distortions.h

+#ifndef OOBDISTORT_H
+#define OOBDISTORT_H
+
+#include <math.h>
+
+/*!
+ * \brief The OOBDistort class linearly distorts (no distortion) x and y when out of bounds.
+ */
+class OOBDistort {
+public:
+    virtual ~OOBDistort() {}
+
+    virtual double x_distort(double v, const double &xlb, const double& xub,
+                               const double& xmin, const double& xmax) const;
+    virtual double y_distort(double v, const double &ylb, const double& yub,
+                               const double& ymin, const double& ymax) const;
+    virtual void bounds_distort(double *x, double *X, double *y, double *Y, const double &xlb, const double &xub, const double &ylb, const double &yub, const double &xmin, const double &xmax, const double &ymin, const double &ymax) const;
+};
+
+/*!
+ * \brief Applies a logarithmic distortion to x and y values when they are out of bounds
+ */
+class OOBLogDistort : public OOBDistort {
+public:
+    OOBLogDistort(float base = M_E) { m_base = base; }
+
+    virtual ~OOBLogDistort() {}
+
+    virtual double x_distort(double v, const double &xlb, const double& xub,
+                               const double& xmin, const double& xmax) const;
+    virtual double y_distort(double v, const double &ylb, const double& yub,
+                               const double& ymin, const double& ymax) const;
+    virtual void bounds_distort(double *x, double *X, double *y, double *Y, const double &xlb, const double &xub, const double &ylb, const double &yub, const double &xmin, const double &xmax, const double &ymin, const double &ymax) const;
+
+    float m_base;
+};
+
+
+#endif // OOBDISTORT_H

base/circularplot/qucircularplot_drawable_i.h

+#ifndef QUCIRCULARPLOT_DRAWABLE_I_H
+#define QUCIRCULARPLOT_DRAWABLE_I_H
+
+class QPainter;
+class QRectF;
+class QWidget;
+class QuCircularPlotEngine;
+
+class QuCircularPlotDrawable_I {
+public:
+
+    /*!
+     * \brief returns true if the drawable scales with zooming
+     *
+     * \return true the drawable scales according to the zoom. It will be painted with the painter *transform* applied
+     *         false the drawable does not scale with the zoom. It will be painted after the painter is *restored* or
+     *         before the transformation is applied, according to the z value
+     * \see z
+     */
+    virtual bool scales() = 0;
+
+    /*!
+     * \brief z defines the z order of the element that is drawn
+     * \return the z order
+     *
+     * Drawable elements with a lower z value are drawn before.
+     *
+     * \par Important note
+     * Axes, curves, baseline and bounds are assumed to have z equal to 0.
+     * Drawables with z less than or *equal to* 0 will be drawn *before* the axes and the curves. Drawables with z greater than
+     * zero will be drawn *after* axes, bounds and curves.
+     */
+    virtual int z() const = 0;
+
+    /*!
+     * \brief paint the drawable on the provided painter.
+     *
+     * Draw a custom shape on the painter.
+     * The plot engine can be used to get the plot configuration
+     *
+     * \par Note
+     * Inner and outer radiuses correspond to the *axes bounds*.
+     * The *valid* area for curves is defined between the inner_radius and the outer_radius.
+     * Outside this section, curves may be drawn deformed.
+     *
+     * Drawables can paint anywhere.
+     *
+     * \param p the active painter
+     * \param plot_e the plot engine
+     * \param inner_radius start of valid scale section
+     * \param outer_radius end of valid scale section
+     * \param rect the drawing area, directly from QGraphicsItem::paint
+     * \param widget pointer to QWidget, directly from QGraphicsItem::paint
+     */
+    virtual void draw(QPainter *p,
+                      const QuCircularPlotEngine *plot_e,
+                      double inner_radius,
+                      double outer_radius,
+                      const QRectF &rect,
+                      QWidget *widget) = 0;
+};
+
+#endif // QUCIRCULARPLOT_DRAWABLE_I_H

base/circularplot/qucircularplotattributes.h

+#ifndef QUCIRCULARPLOTATTRIBUTES_H
+#define QUCIRCULARPLOTATTRIBUTES_H
+
+#include <QColor>
+
+class OOBDistort;
+
+/*!
+ * \brief Holds QuCircularPlot options
+ *
+ * This struct hierarchically stores the characteristics of the plot
+ *
+ * \section axes
+ * Defines the axes configuration
+ *
+ * \subsection x
+ * Defines the x axis configuration
+ * - baseline
+ * - autoscale
+ * - lower bound
+ * - upper bound
+ *
+ * \subsection y
+ * Defines the y axis configuration:
+ * - scale_inverted
+ * - autoscale
+ * - lower bound
+ * - upper bound
+ *
+ * \section geom
+ * Defines the geometrical characteristics of the plot: the inner and outer radius representing the
+ * axis limits (lower and upper) and the kind of distortion that shall be applied to curves when
+ * their points exceed the (non automatic) Y bounds.
+ *
+ * \subsection selection
+ * Geometry for the selection (movable selection area and selected point on the curve)
+ *
+ * \section paint
+ * Contains drawing options (show hide elements) and *colors* in the dedicated section
+ *
+ * \subsection colors
+ * Define colors for several elements
+ *
+ * \section Note
+ * Whenever you change one or more attributes, you may want to trigger an immediate *update*
+ * on the plot (either item or widget)
+ *
+ * \section Example
+ *
+ * \code
+    QuCircularPlotI *ni = new QuCircularPlotI(nullptr, QSize(300, 300));
+    QuCircularPlotEngine *pie = ni->engine();
+    qucircularplot_attributes &a = pie->a;
+    a.axes.y.autoscale = true;  // enable y axis autoscale
+    a.geom.inner_radius_factor = 0.1; // widen inter axes area
+    a.paint.colors.background = QColor(Qt::white);  // light color scheme
+    ni->update();
+ * \endcode
+ *
+ */
+struct qucircularplot_attributes
+{
+    struct {
+        struct {
+            float baseline = 0.0f;
+            bool autoscale = true;
+            double lb = -1000;
+            double ub = 1000;  // "axis" bounds, either manual or auto
+        } x;
+
+        struct {
+            bool autoscale = true;
+            bool scale_inverted = false;
+            double lb = -1000;
+            double ub = 1000;
+        } y;
+
+    } axes;
+
+    struct {
+
+        double inner_radius_factor = 0.2; //!< where (geometrically) the lower bound is
+        double outer_radius_factor = 0.8; //!< where (geometrically) the upper bound is
+
+
+        OOBDistort *oob_distortion = nullptr; //!< "out of bounds" curve distortion
+                                    //!< defines how curves are distorted when points
+                                    //!< exceed Y axis upper and lower bounds
+                                    //!< Default must be initialized (QuCircularPlotEngine)
+
+        struct {
+            float aradius = 3.5; //!< radius of the (moving) circular selection area
+            float yp_radius = 1.2; //!< radius of the point selected on the curve
+        } selection; //!< selection attributes
+
+    } geom; //!< geometry attributes: inner and outer radius, radius factor
+
+    struct {
+        bool show_values = false; //!<  show values on the plot. Default: false. OK when there's little data
+        bool show_points = false; //!<  show data points (default: false, while show_curves is true by default)
+        bool show_bounds = true; //!<  draw one circle on the lower bound and one on the upper (default: yes)
+
+        bool show_curves = true;  //!< show the curves (lines connecting the data points): default true
+        bool show_xax = true; //!<  show the "X" axis: default: yes on the baseline
+        bool show_origin = true; //!< show the "origin" at 9 o'clock default: true
+
+        int y_axes = 0; //!< number of "Y" axes to show default: 0
+
+        struct {
+
+            QColor background = QColor(Qt::white);   //!<  background color
+            QColor axes = QColor(Qt::lightGray);  //!<  axes color
+        } colors;
+
+    } paint; //!< "paint" attributes: show or hide things
+};
+
+#endif // QUCIRCULARPLOTATTRIBUTES_H

base/circularplot/qucircularplotconfigurator.cpp

+#include "qucircularplotconfigurator.h"
+#include <QApplication>
+#include <QSettings>
+#include <QString>
+#include <QPen>
+#include <qucircularplotcurve.h>
+#include <qupalette.h>
+#include <cumacros.h>
+
+QuCircularPlotConfigurator::QuCircularPlotConfigurator()
+{
+
+}
+
+void QuCircularPlotConfigurator::configure(QuCircularPlotCurve *c, int curves_cnt)
+{
+    QSettings s("elettra.eu", qApp->applicationName());
+    const QString& id = m_get_id(c);
+    QStringList groups = s.childGroups();
+    int idx = groups.indexOf(id);
+    if(c != nullptr && idx >= 0) {
+        s.beginGroup(id);
+        printf("\e[1,33m loading from settings %s\e[0m\n", qstoc(id));
+        /* choose a nice curve color or load it from QSettings, if defined for the application name and
+         * curve name.
+         */
+        QColor curveColor = s.value("pen/color", c->pen().color()).value<QColor>();
+        int alpha = s.value("pen/color/alpha", c->pen().color().alpha()).toInt();
+//        int curveStyle = s.value("pen/style", c->style()).toInt();
+        double penWidth = s.value("pen/width", c->pen().widthF()).toDouble();
+        //        bool displayYValues = s.value(id + "/show-values", false).toBool();
+        curveColor.setAlpha(alpha);
+        QPen curvePen(curveColor);
+        curvePen.setWidth(penWidth);
+        pretty_pri("pen width %f", penWidth);
+        c->setPen(curvePen);
+        //        c->setProperty("showYValuesEnabled", displayYValues);
+        s.endGroup();
+    }
+    else if(c != nullptr) {
+        QuPalette palette;
+        QStringList colors = QStringList() << "dark_green" << "blue" << "violet"
+                                           << "red" << "black" << "light_gray" << "yellow" <<  "green" << "gray"
+                                           << "orange" << "pink" << "dark_red";
+        QString color_nam = colors.at(curves_cnt % colors.size());
+        QColor curveColor = palette.value(color_nam);
+        QPen curvePen(curveColor, 0.0);
+        c->setPen(curvePen);
+    }
+}
+
+QString QuCircularPlotConfigurator::m_get_id(const QuCircularPlotCurve *c) {
+    return c->source().replace("/", ".");
+}

base/circularplot/qucircularplotconfigurator.h

+#ifndef QUCIRCULARPLOTCONFIGURATOR_H
+#define QUCIRCULARPLOTCONFIGURATOR_H
+
+class QuCircularPlotCurve;
+
+#include <QString>
+
+class QuCircularPlotConfigurator
+{
+public:
+    QuCircularPlotConfigurator();
+
+    void configure(QuCircularPlotCurve *c, int curvecnt);
+
+    QString m_get_id(const QuCircularPlotCurve *c);
+};
+
+#endif // QUCIRCULARPLOTCONFIGURATOR_H
